Liquid Sauce 3nh Colorimeter 3nh NH310 USB Data Port With Universal Test Components

Shenzhen ThreeNH Technology Co., Ltd.
Contact Now

Liquid Sauce 3nh Colorimeter 3nh NH310 USB Data Port With Universal Test Components

  • 1
  • 2

Brand Name : 3nh

Model Number : NH310

Certification : CE, TUV, FCC, ISO9001, RohS

Place of Origin : Shenzhen, China

MOQ : 1 Unit

Price : Please send inquiry

Payment Terms : T/T

Supply Ability : 500 Units per Month

Delivery Time : 2-5 work days

Packaging Details : 46*25*38cm, 4.5kg, Alluminum Box

Optical Geometry : 8°/d

Measuring Aperture : Φ8mm & Φ4mm

Repeatibility : ΔE*≤0.06

Inter-instrument Agreement : ΔE*≤0.4

Data Port : USB

Storage Capacity : 100 Standards & 2000 Samples

Contact Now

Product Description

Liquid sauce colorimeter for color difference check with universal test components 3nh NH310

NH310 high-quality portable colorimeter has adopted multi-channel color sensors of international brands, more stable IC platform as well as efficient and accurate algorithms to provide users with accurate and fast color management and application. NH310 is also designed with ergonomics and humanized operation and it has applied for a number of patents. NH310 is a multifunctional colorimeter with high quality and competitive price. 3nh insists on independent research whose technology innovation is unique in color management field. NH310 is the most convenient colorimeter for users.

Main Features

The repeatable accuracy of NH310 is: DE<0.08.


NH310 adopts a wide range of innovative technologies

1. Both camera locating and illumination locating

2. Built-in standard white calibration plate; Automatic calibration at startup

3. Optional 8mm extended aperture, available for measuring concave surface

4. Configuring 8mm & 4mm apertures which can measure colors of any item

Model
NH310 portable colorimeter
Display Mode
CIE L*a*b; CIE XYZ; CIE RGB;CIEL*u*v; CIE*C*H; Whiteness &Yellowness; Color Fastness
Color Difference Formula
ΔE*ab; ΔL*ab; ΔE*C*H; ΔECIE94; ΔEHunter
Illuminating/viewing geometry
8/d (8°illumination angle/diffuse viewing)
Light Source
LED blue light excitation
Detector
Silicon photoelectric diode
Measuring Aperture
Φ8mm; Φ4mm; Φ8mm extended aperture (optional)
Measuring Conditions
Observer: CIE 10° Standard Observer
Measuring Range
L: 0 to 100
Repeatability
Standard deviation within ΔE*ab 0.06 (Measurement Conditions: Average of 30 measurements of standard white plate)
Storage
100 pcs standard samples; 20000 pcs test samples
Battery Life
More than 3000 measurements
Interface
Model B: USB RS-232: Baud rate 19200bps
Lamp Life
more than 1.6 million times in 5 years
Standard Accessories
AC Adapter; Li-ion Battery; Operation Manual; Software CD; USB Cable; White Calibration Cover; Φ8mm Measuring Aperture; Φ4mm Measuring Aperture
Optional Accessories
Extended Aperture(Φ8mm); Mini-printer; Printer Cable, Universal Test Components, Powder Test Box

Detailed Images

Liquid Sauce 3nh Colorimeter 3nh NH310 USB Data Port With Universal Test ComponentsLiquid Sauce 3nh Colorimeter 3nh NH310 USB Data Port With Universal Test ComponentsLiquid Sauce 3nh Colorimeter 3nh NH310 USB Data Port With Universal Test ComponentsLiquid Sauce 3nh Colorimeter 3nh NH310 USB Data Port With Universal Test Components

Our Services

1.24 hours online to ensure quick response to customers' inquiry or online message;

2. Help customers to choose the best suitable machine model;

3. We support OEM and ODM service and 12 months warranty from the purchase date.

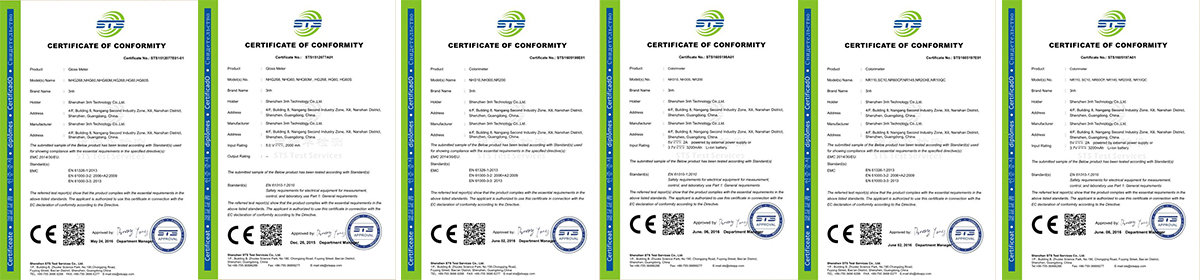

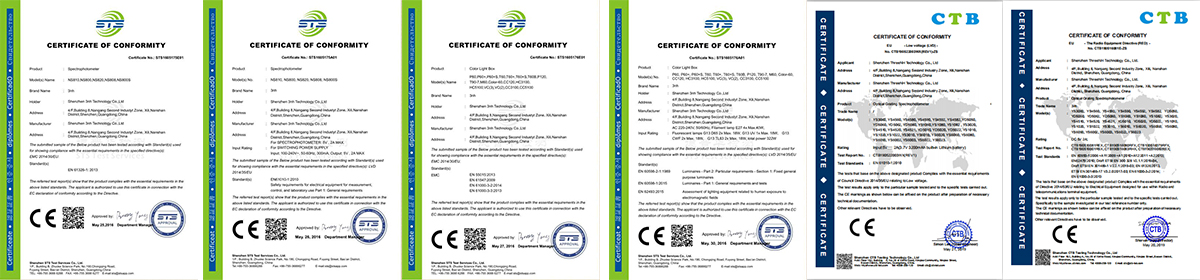

Certifications

Liquid Sauce 3nh Colorimeter 3nh NH310 USB Data Port With Universal Test Components

Liquid Sauce 3nh Colorimeter 3nh NH310 USB Data Port With Universal Test Components

Application

3nh colorimeter spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.

Liquid Sauce 3nh Colorimeter 3nh NH310 USB Data Port With Universal Test Components

Company Information

3nh & tilo is a very professional manufacturer from China for 22 years, and mainly produces colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc.

Liquid Sauce 3nh Colorimeter 3nh NH310 USB Data Port With Universal Test Components

FAQ

1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 22 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
