Portable 3nh NH310 colourimeter liquid color test meter with Accessory
1. Product Profile
NH310 portable colorimeter is a precise instrument for surface color measurement and control, which can be widely applied in all kinds of industries, such as plastics, metals, paint and coating, furniture, wood, ink, printing and packaging, pharmacy, cosmetics, fabrics, textiles and garments, electronics, tiles and decoration industry.
In one word, NH310 portable colorimeter can be quite well applied in any place that requires color control or color management.
2. Detailed Technical Parameter / Specification Form
| Technical Parameter Items | NH310 Portable Colorimeter |
| Product Category | Optical Electronic Color Measurement Instrument |
| Product Name | Portable Color Difference Meter |
| Optical Geometry | Reflectance: 8°/d |
| Measuring Apertures | Two Apertures: ∅4mm + ∅8mm |
| Color Spaces | CIE L*a*b, CIE XYZ, CIE L*C*h, CIE L*u*v, CIE RGB |

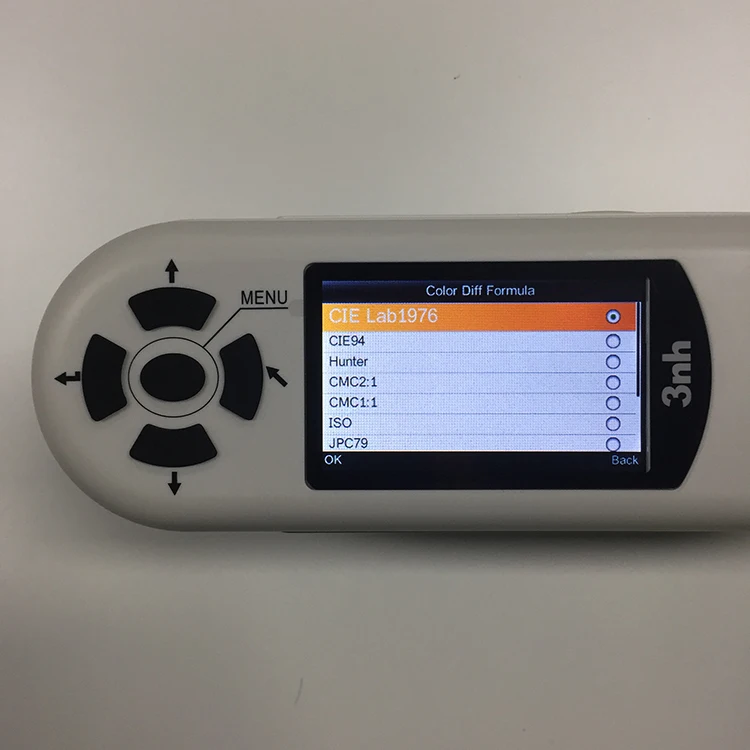

| Color Difference Formulas | ΔE*Lab, ΔE*94, ΔE*LCh, ΔE(Hunter), ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*Luv, ΔE*2000, ISO, JPC79, BFD(1.5:1), FMCII |
| Repeatability Error | ΔE*ab≤0.06 |
| Inter-instrument Error | ΔE*ab≤0.4 |
| Other Colorimetric Index | Yellowness, Whiteness, Color Fastness, Staining Fastness |

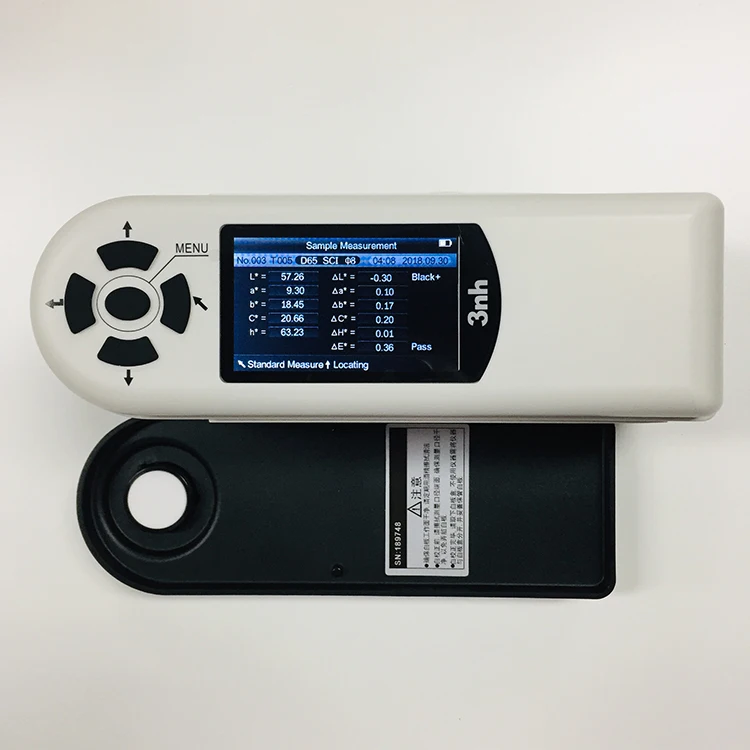

| Information Displayed | Chromaticity Values, Color Difference Values, Pass/Fail Result, Color Offset/Deviation Direction |
| SCI/SCE | SCI/SCE |
| Viewing Angle | 10° |
| Illuminating Lamps | LED Bule Light Excitation |
| Lamps Life-span | 5 Years, more than 1.6 Million times of measurements. |
| Measurement Range | L: 0 - 100 |
| Illuminants | D65, D50, A |
| Sensor | Silicon Photoelectric Diode |
| Measurement Time | 1 second |
| Data Storage Capacity | 100 pcs of Standards, 20000 pcs of Samples. |
| Data Transmission Port | USB |
| PC Terminal Software | CQCS3 (for free) |
| Display Screen | 2.8 inches TFT Display |
| Language Built-in | English, Chinese |
| Power Supply | Rechargeable Battery, Power Adapter |
| Battery Capacity | More than 3000 times of measurements |
| Working Environment | Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation) |
| Storage Environment | Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation) |
| Standard Accessories | White Calibration Board & Protective Cover, ∅8mm & ∅4mm Aperture, Power Adapter, USB Cable, PC Software CQCS3, Rechargeable Battery, User Manual. |
| Optional Accessories | Mini Thermal Printer, Powder Test Box, Universal Test Component, ∅8mm Extended Aperture for Concave Surface. |
| Weight | 500g |
| Dimension | 205*70*100mm |
3. Detailed Introduction to Instrument
3.1. High configuration of hardware: 2.8 inches TFT display, showing more comprehensive colorimetric indexes in one screen, making your operation more convenient and freer, checking color data very clearly.
3.2. Long life-span stable LED lamps which can generate different kinds of light sources and color temperatures more accurately. LED lamps are famous for their durablility which makes the instrument more stable and durable.
3.3. Pass/Fail test result indication, help you to decide if the color of the sample meets the requirement very promptly.
3.4. Color Offset/Deviation Direction indication between the standards and the samples which is definitely helpful for you to figure out the wanted color formulation.

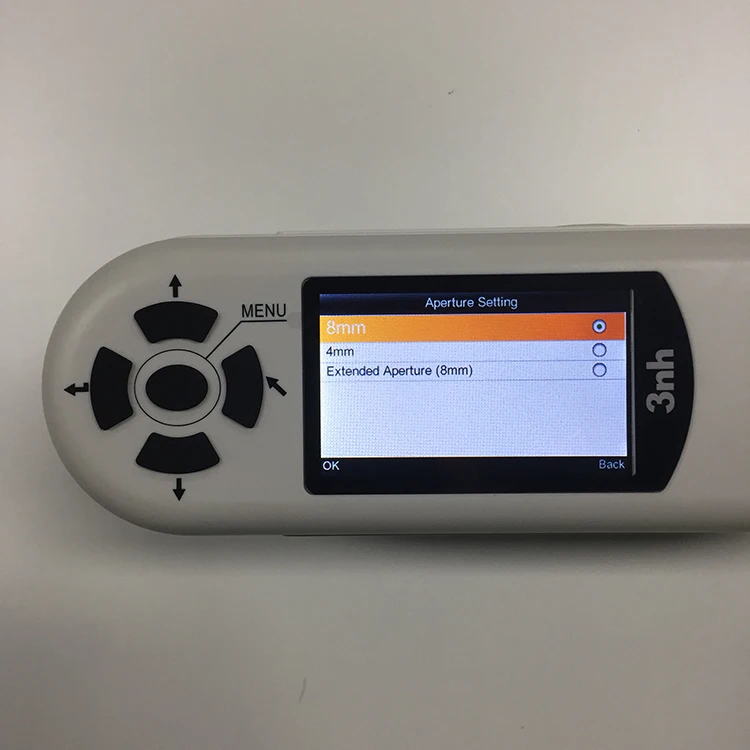

3.5. The ∅8mm and ∅4mm measuring apertures, can better measure the colors of different kinds of targets from big ones and small ones.
3.6. All kinds of Color Spaces, Color Difference Formulas and Colorimetric Indexes, meet all the requirements for color measurement and color analysis.
3.7. Include all kinds of light source types, meet all requirements of color control and management.
3.8. Two color measurement modes: Quality Mode and Average Mode, meet more color management situations.
3.9. Data management functions, you can search and check records, delete records, select standards.
3.10. Configured with a PC terminal software CQCS3, more extended powerful functions for color data management can definitely facilitate your color management work.
3.11. USB data port, implement data transmission more convenient and prompt.
3.12. Built-in camera for aiming at the target to be measured precisely, very effcient in measuring small spot colors.

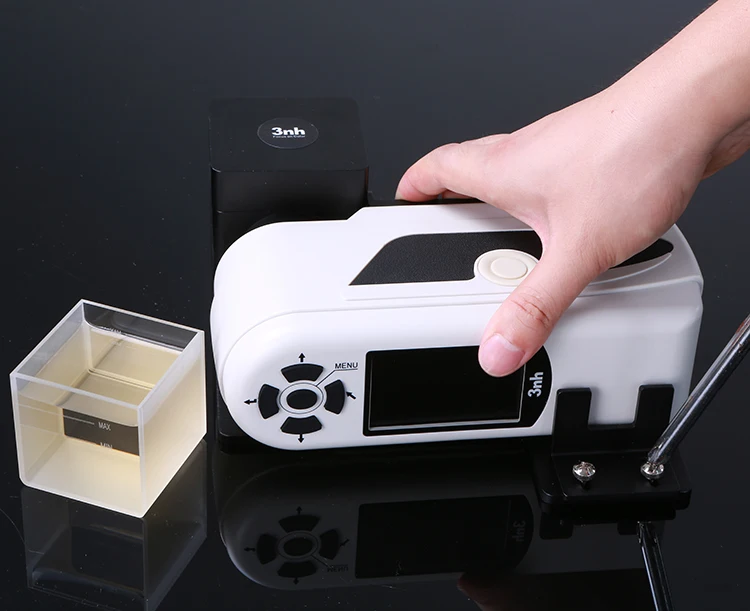

3.13. If configured with a Powder Test Box, it can measure the color of powders; if configured with a Universal Test Component, it can measure the color of powders, liquids and pastes.
4. Company Profile
NH310 was developed and manufactured independently by Shenzhen 3nh/ThreeNH Technology Co., LTD. which is a national high-tech company who has been specializing in researching and developing, manufacturing and marketing surface color measuring instruments and equipment, gloss measurement meters and also color matching light cabinets for over 22 years, since founded in 1998.
We will always warmly welcome customers, partners and friends to visit our company and factory in Shenzhen, China.
5. Frequently Asked Questions
1. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
2. What's your main market?
Answer: We sell to the global market.
3. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
4. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.
5. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
