Product Description

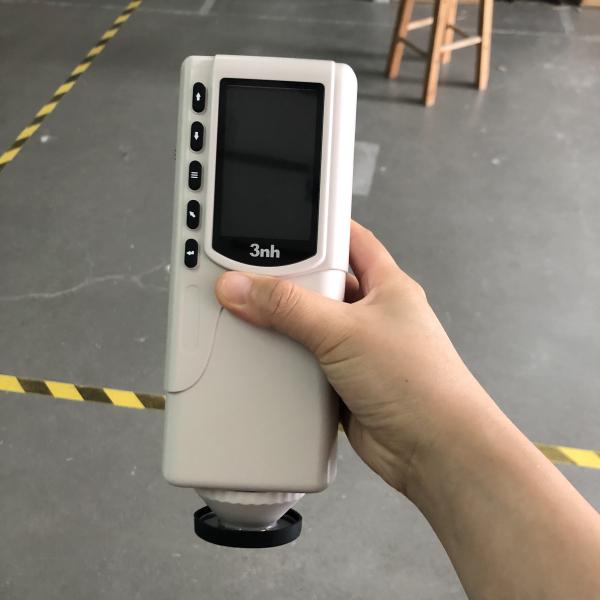

NR100 Precision Colorimeter
3nh R&D team concentrates on customer needs and develops a high precision & low cost portable colorimeter NR100. This new model NR100 features with two apertures Φ8mm flat aperture and Φ4mm tip aperture, suitable for most samples use. With color space CIE LAB, NR100 is good to check color difference for delta E, and widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.
Product Advantages
a. Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.
b. Double Apertures: Φ8mm flat aperture and Φ4mm tip aperture for switch, easy to measure concave sample in large plane.
c. Equipped with rechargeable built-in high-capacity Li-ion battery. No need to purchase battery repeatedly.
d. Handheld design: small and convenient; make the measurement easier.
e. Exquisite appearance: adopts traditional and fashionable aesthetic designs.
f. High cost performance: large output, good quality, cheap products.
NR100 Colorimeter Technical Specifications
| Model | NR100 |
| Illuminating/Viewing Geometry | 8/d(8°illumination angle/diffuse viewing); Conforms to CIE No.15,GB/T 3978. |
| Illumination | LED white light |
| Detector | Silicon photoelectric diode |
| Measuring Aperture | Φ8mm flat aperture; Φ4mm tip aperture |
| Color Space | CIE LAB |
| Color Difference Formula | ΔE*ab |
| Observer Angle | CIE 10° |
| Light Source | D65 |
| Displayed Data | Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | 1.0s |
| Repeatability | Standard deviation within ΔE*ab 0.03 (Average of 30 measurements of standard white plate) |
| Errors Between Each Equipment | Within ΔE*ab 0.4
(Average for 12 BCRA Series II color tiles) |
| Dimension | 205×67×80 mm |
| Weight | 500g |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life | TFT 2.8 inch |
| Interface | USB |
| Data Memory | 100pcs standards 10000pcs samples |
| Operating Environment | 0~40℃(32~104°F) |
| Storage Environment | -20~50℃(-4~122°F) |
| PC Software | No |
| Standard Accessory | Power Adapter, User Guide, Wristbands, Φ8mm flat aperture; Φ4mm tip aperture. |
| Optional Accessory | Micro Printer, powder test box |
| Notes: The specifications are subject to change without notice. |
Application
3nh colorimeter spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
Our Services
We can ship by DHL, Fedex, UPS, TNT, SF express etc door to door, and we support 1 year warranty except consumables.
Company Information
3nh & tilo is a very professional manufacturer from China for 22 years, and mainly produces colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc.
Our Certificates:
ISO9001; CE; FCC; ROHS; TUV; SCM.
The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
