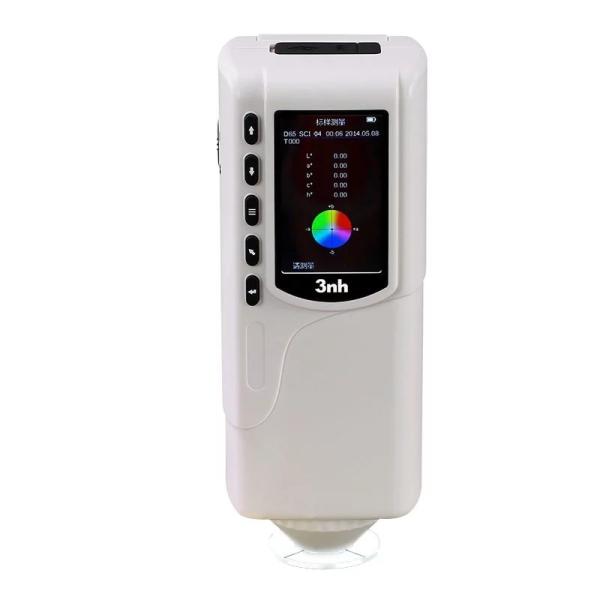

4mm aperture food colorimeter 3nh nr100 for color test

Brand Name : 3nh

Model Number : NR100

Certification : CE, TUV, FCC, ISO9001, RohS

Place of Origin : Shenzhen, China

MOQ : 1 Unit

Price : 400

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000 Units per Month

Delivery Time : 1-3 work days

Packaging Details : 37*17*31cm, 2kg, CARTON Box

Measuring Aperture : Φ4mm & 8mm

Repeatability : within ΔE*ab 0.03

Illuminating/Viewing Geometry : 8° / d

Color Space : CIE LAB

Power : Rechargeable lithium-ion battery

Storage : 100 pcs standard samples; 10000 pcs test samples

Color Difference Formula : ΔE*ab; ΔL*ab; ΔE*C*H

Measuring Conditions : CIE 10° Standard Observer

Contact Now

Cheap Color Difference Meter Color Test Meter NR100 3nh Colorimeter CIE LAB Delta E

3nh R&D team concentrates on customer needs and develops a high precision & low cost portable colorimeter NR100. This new model NR100 features with two apertures Φ8mm flat aperture and Φ4mm tip aperture, suitable for most samples use. With color space CIE LAB, NR100 is good to check color difference for delta E, and widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.

4mm aperture food colorimeter 3nh nr100 for color test

Product Advantages

a. Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.

b. Double Apertures: Φ8mm flat aperture and Φ4mm tip aperture for switch, easy to measure concave sample in large plane.

c. Equipped with rechargeable built-in high-capacity Li-ion battery. No need to purchase battery repeatedly.

d. Handheld design: small and convenient; make the measurement easier.

e. Exquisite appearance: adopts traditional and fashionable aesthetic designs.

f. High cost performance: large output, good quality, cheap products.

NR100 Colorimeter Technical Specifications

Model NR100
Illuminating/Viewing Geometry 8/d(8°illumination angle/diffuse viewing); Conforms to CIE No.15,GB/T 3978.
Illumination LED white light
Detector Silicon photoelectric diode
Measuring Aperture Φ8mm flat aperture; Φ4mm tip aperture
Color Space CIE LAB
Color Difference Formula ΔE*ab
Observer Angle CIE 10°
Light Source D65
Displayed Data Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time 1.0s
Repeatability Standard deviation within ΔE*ab 0.03 (Average of 30 measurements of standard white plate)
Errors Between Each Equipment Within ΔE*ab 0.4
(Average for 12 BCRA Series II color tiles)
Dimension 205×67×80 mm
Weight 500g
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life TFT 2.8 inch
Interface USB
Data Memory 100pcs standards 10000pcs samples
Operating Environment 0~40℃(32~104°F)
Storage Environment -20~50℃(-4~122°F)
PC Software No
Standard Accessory Power Adapter, User Guide, Wristbands, Φ8mm flat aperture; Φ4mm tip aperture.
Optional Accessory Micro Printer, powder test box
Notes: The specifications are subject to change without notice.

Applications:

3nh colorimeter spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic industries, scientific research institutes, schools and laboratories. It not only can help to perform color matching and color management studies, but also can control product quality management. 3nh colorimeter is equipped with high-end color management software that can connect to PC to achieve more extension functions.
4mm aperture food colorimeter 3nh nr100 for color test 4mm aperture food colorimeter 3nh nr100 for color test 4mm aperture food colorimeter 3nh nr100 for color test
Textile Garment Fabric PVC Film Leather
4mm aperture food colorimeter 3nh nr100 for color test 4mm aperture food colorimeter 3nh nr100 for color test 4mm aperture food colorimeter 3nh nr100 for color test

Packaging & Shipping

Size 45*23*38cm
Gross weight 3kg
Standard accessory Power Adapter, User Guide, Wristbands, Φ8mm flat aperture; Φ4mm tip aperture.
Optional accessory micro printer, power test box

Our Services

We can ship by DHL, Fedex, UPS, TNT, SF express etc door to door, and we support 1 year warranty except consumables.
